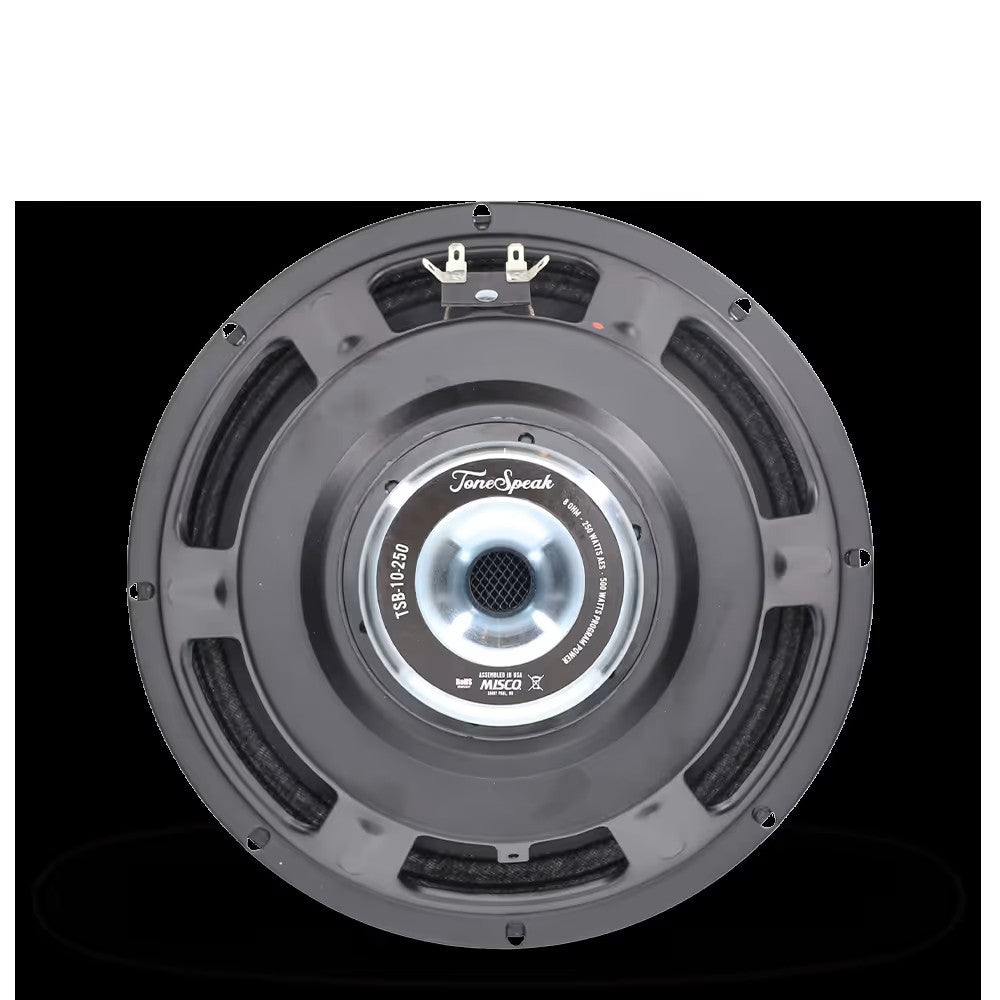

ToneSpeak TSB-10-250 - 10" Neo Bass Guitar Speaker 250 Watt 8 Ohm

SKU: TSB-10-250

Canadian Dollar Price:
Sale price$372.59
Stock:
In stock (6 units)

Description

TSB-10-250

Delivering exceptional punch and clarity, the TSB-10-250 is a 10-inch bass guitar speaker built for musicians who demand high output and precision. With a durable stamped-steel frame and a powerful 7 oz. neodymium magnet, this speaker offers a remarkable balance of high-end articulation and deep, controlled bass—without the added weight of conventional magnets.

Boasting 250 watts AES and 500 watts program power handling, the TSB-10-250 is designed to handle even the most demanding performances. Its 2.5-inch inside/outside copper voice coil, wound on a fiberglass former, ensures stability and consistency, while the paper cone and cloth M-roll surround enhance warmth and responsiveness.

Key Features:

  • 10-inch (254 mm) bass guitar speaker with pressed steel frame
  • 250 watts AES / 500 watts program power handling
  • 7 oz. neodymium magnet for powerful yet lightweight performance
  • 2.5-inch inside/outside wound copper voice coil with fiberglass former
  • Paper cone with cloth M-roll surround for rich lows and smooth articulation
  • High sensitivity (97.6 dB SPL) for outstanding projection

For bassists who need a speaker that delivers both power and portability, the TSB-10-250 offers a dynamic, responsive sound that can cut through any mix with ease.






Nominal Diameter (in & mm) 10" (250 mm)
Nominal Impedance (Z) (Ω)
Rated Power IEC 60268-5 (W) 250
Program Power (W) 500
Magnet Weight (g) 198.5
Voice Coil Diameter (mm) 63.5
Sensitivity (dB SPL) 97.6
Frequency Range (Hz) 55 - 6000
Resonant Frequency (Fs) (Hz) +/- 15% 46
DC Resistance (Re) (Ω) 5.6
Voice Coil Inductance (Le) (mH) 0.52
Moving Mass (Mms) (gm) 33.3
Suspension Compliance (Cms) (mm/N) 0.35
Motor Force Factor (BL) (T•M) 15.3
Mechanical Q Factor (Qms) 8.47
Electrical Q Factor (Qes) 0.23
Total Q Factor (Qts) 0.23
Compliance Equivalent Volume (Vas) (L) 60.23
Surface Area of Diaphragm (Sd) (cm²) 346.36
Basket Type Pressed steel
Magnet Material Neodymium
Cone Body Material Paper
Cone Surround Material Cloth
Dust Cap Material Felt
Spider Material
Voice Coil Wire Material Copper
Voice Coil Former Material Fiberglass
Voice Coil Winding Style Inside / Outside
