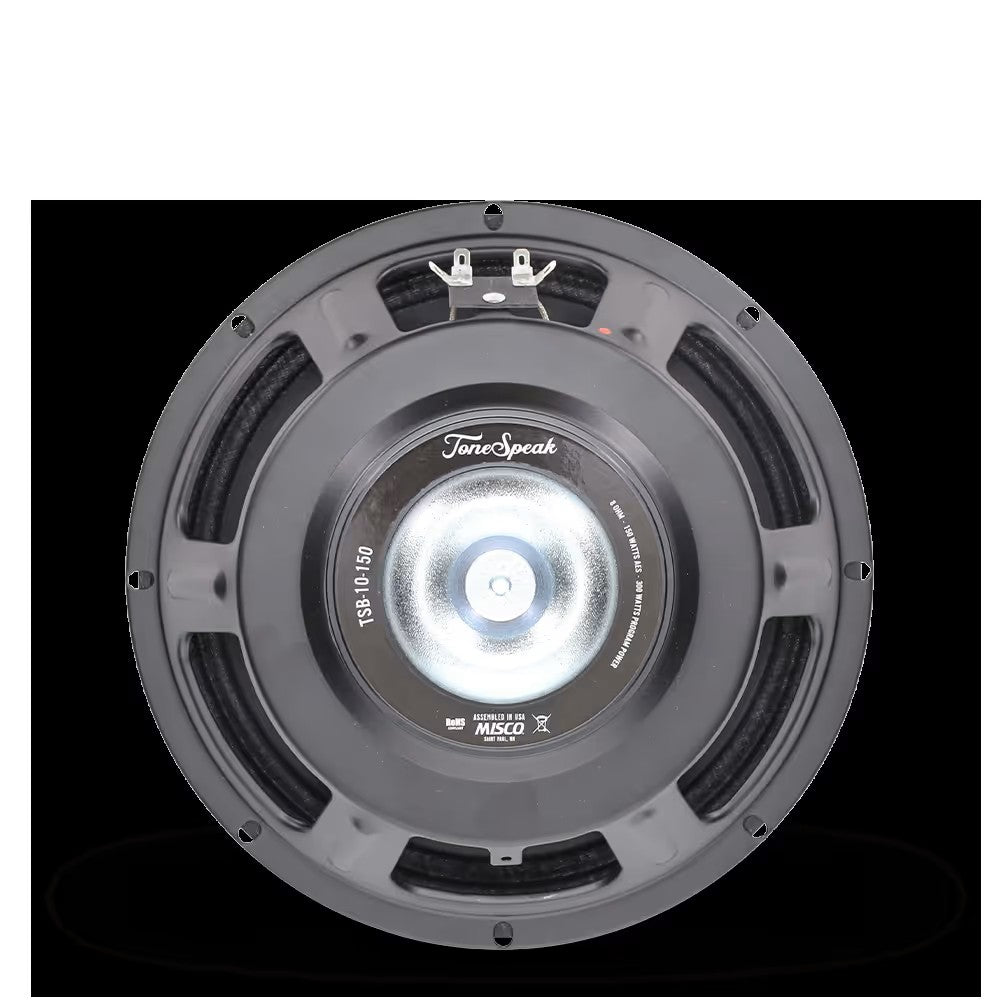

ToneSpeak TSB-10-150 - 10" Neo Bass Guitar Speaker 150 Watt 8 Ohm

SKU: TSB-10-150

Canadian Dollar Price:
Sale price$331.19
Stock:
In stock (6 units)

Description

TSB-10-150

Unleash powerful bass tones with the TSB-10-150, a 10-inch bass guitar speaker designed for clarity, punch, and reliability. Its lightweight pressed-steel frame and 4 oz. neodymium magnet provide exceptional high-end articulation without adding unnecessary weight, making it a perfect fit for gigging bassists and lightweight cabinet designs.

With 150 watts AES and 300 watts program power handling, the TSB-10-150 delivers strong, controlled low-end response with rich, dynamic mids and smooth highs. The 2-inch copper voice coil, wound on a durable fiberglass former, ensures consistent performance under demanding conditions, while the paper cone and cloth M-roll surround enhance warmth and natural resonance.

Key Features:

  • 10-inch (254 mm) bass guitar speaker with pressed steel frame
  • 150 watts AES / 300 watts program power handling
  • 4 oz. neodymium magnet for lightweight performance
  • 2-inch inside/outside wound copper voice coil with fiberglass former
  • Paper cone with cloth M-roll surround for warmth and clarity
  • High sensitivity (96.3 dB SPL) for excellent projection

For bassists who demand portability without sacrificing tone, the TSB-10-150 delivers the power, precision, and clarity needed to stand out in any mix.






Nominal Diameter (in & mm) 10" (250 mm)
Nominal Impedance (Z) (Ω) 8
Rated Power IEC 60268-5 (W) 150
Program Power (W) 300
Magnet Weight (g) 113.4
Voice Coil Diameter (mm) 50.8
Sensitivity (dB SPL) 96.3
Frequency Range (Hz) 55 - 6000
Resonant Frequency (Fs) (Hz) +/- 15% 50
DC Resistance (Re) (Ω) 5.5
Voice Coil Inductance (Le) (mH) 0.49
Moving Mass (Mms) (gm) 31.2
Suspension Compliance (Cms) (mm/N) 0.33
Motor Force Factor (BL) (T•M) 12
Mechanical Q Factor (Qms) 9.43
Electrical Q Factor (Qes) 0.38
Total Q Factor (Qts) 0.36
Compliance Equivalent Volume (Vas) (L) 55.84
Surface Area of Diaphragm (Sd) (cm²) 346.36
Basket Type Pressed steel
Magnet Material Neodymium
Cone Body Material Paper
Cone Surround Material Cloth
Dust Cap Material Felt
Spider Material
Voice Coil Wire Material Copper
Voice Coil Former Material Fiberglass
Voice Coil Winding Style Inside / Outside
