Description

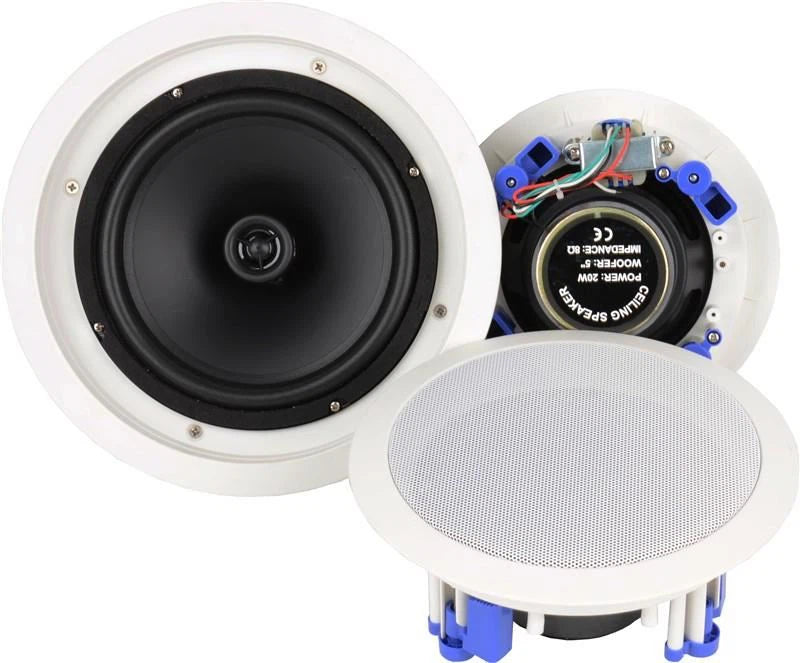

8" 70 volt/8 ohm easy mount co-axial ceiling assembly.
|
SPECIFICATIONS Nominal Diameter: 8", 203mm Nominal Impedance: 70 volt Nominal Power: 40 W rms @ 8ohm Freq. Response: 40 Hz-20 kHz Sensitivity: 92 db 1w/1m MOUNTING INFORMATION Overall Diameter: 10.86", 276mm Baffle Hole Diameter: 9.44", 240mm Depth: 3.77", 93mm CONSTRUCTION -Enclosed metal back box -70 volt -Transformer taps at 10W, 20W, 40W -12 dB crossover with poly tweeter network -Ferrite magnet |
