Description

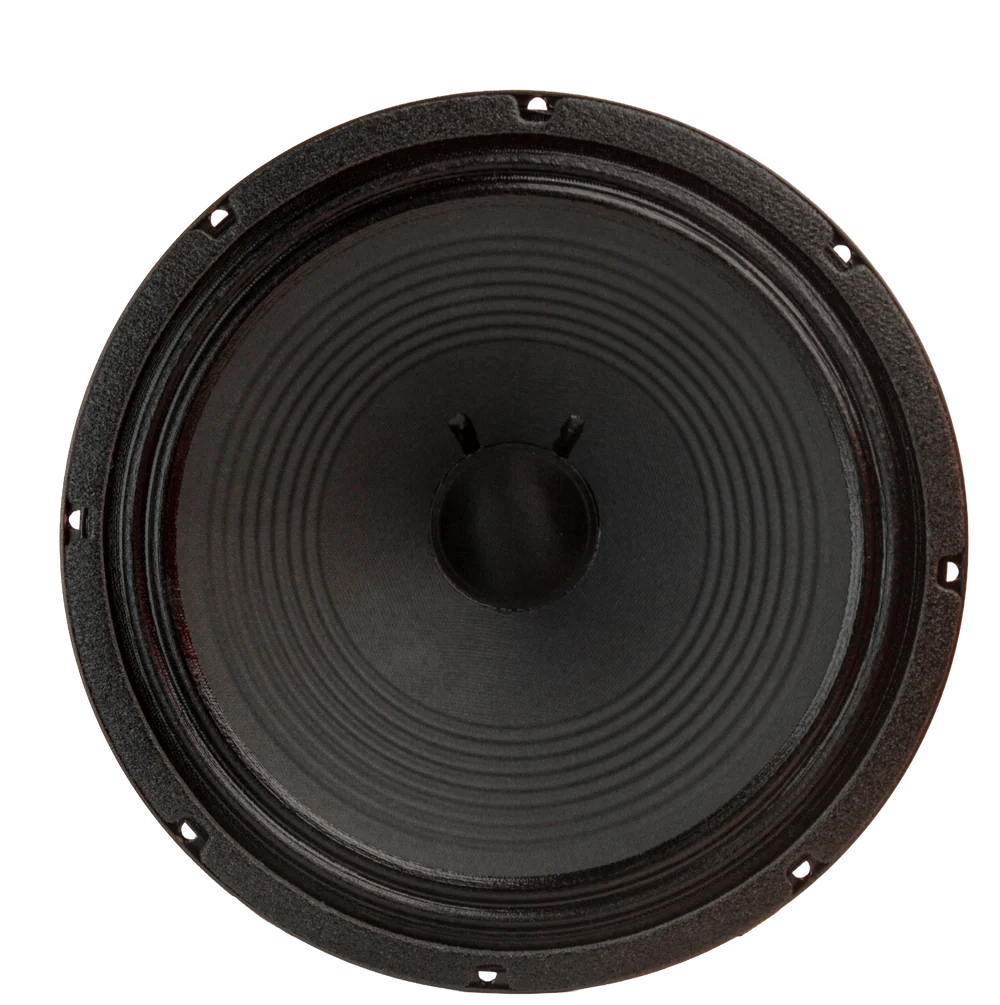

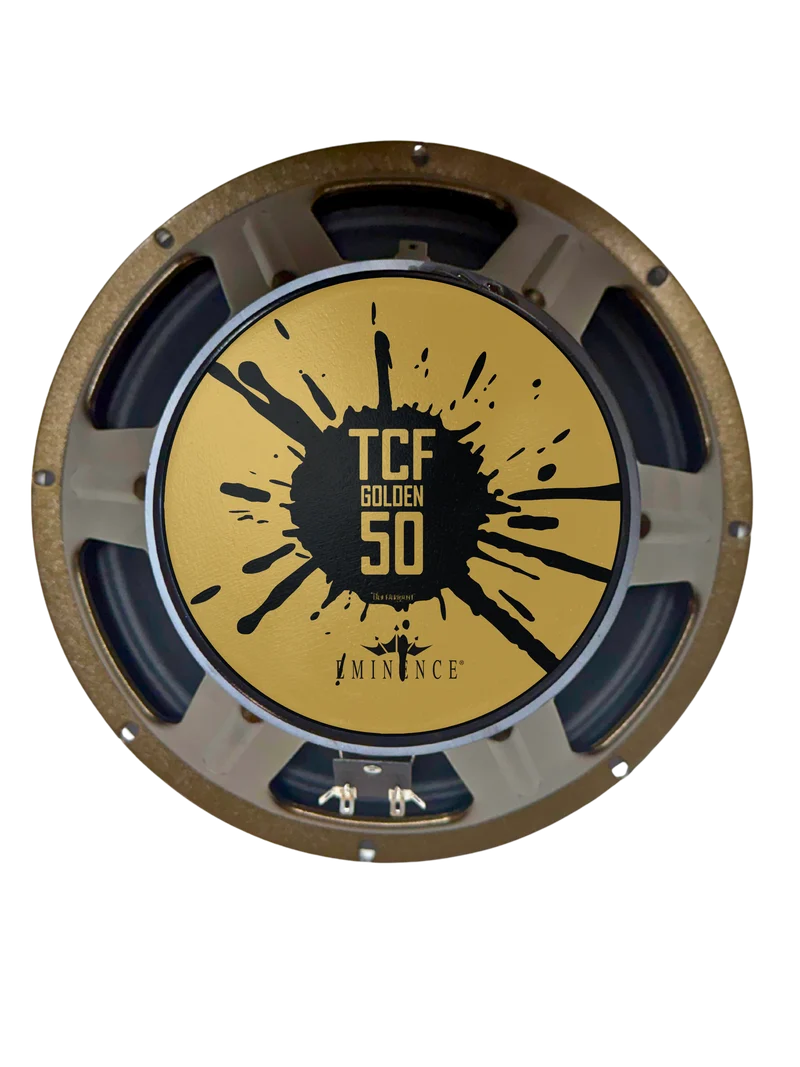

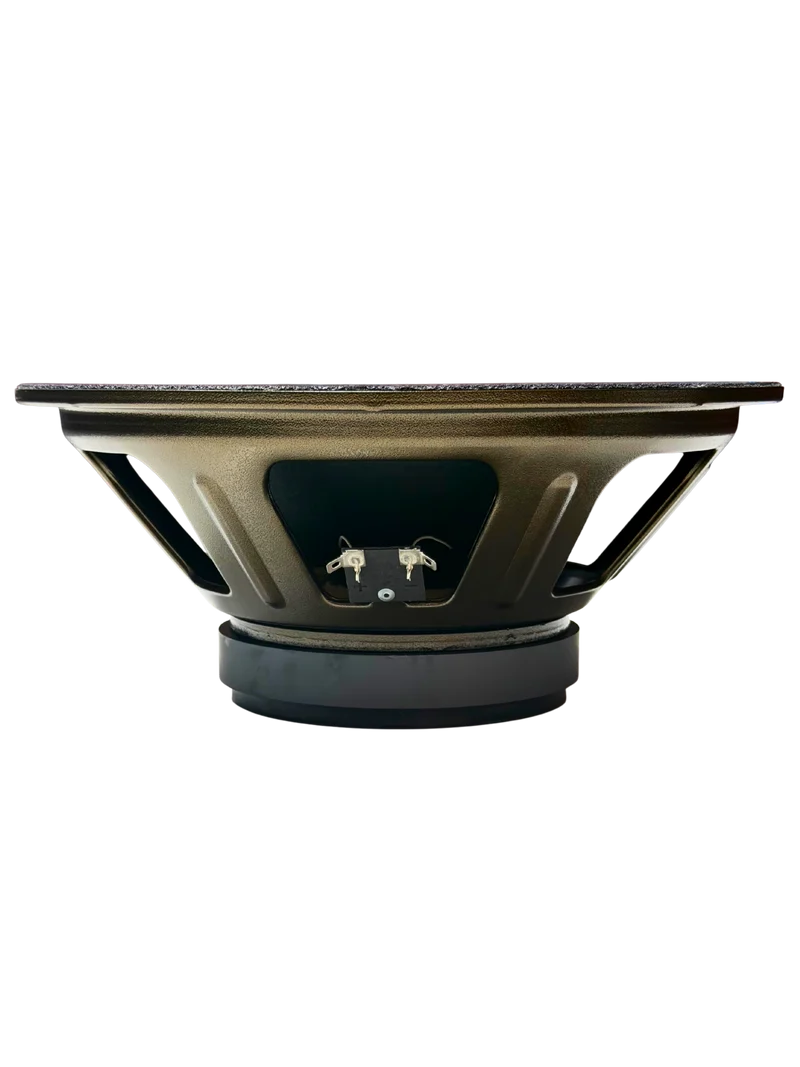

Eminence TCF Golden 50, British voiced 12" guitar speaker
| Specification | |
| Nominal Basket Diameter | 12", 305 mm |
| Nominal Impedance* | 16 Ω |
| Power Rating* | |
| Program Power | 70 W |
| Watts | 50 W |
| Resonance | 80 Hz |
| Usable Frequency Range | 75 Hz - 5.0 kHz |
| Sensitivity* | 99.1 |
| Magnet Weight | 56 oz. |
| Gap Height | 0.375", 9.53 mm |
| Voice Coil Diameter | 1.75", 44 mm |
| Thiele & Small Parameters | |
| Resonant Frequency (fs) | 80 Hz |
| DC Resistance (Re) | Ω |
| Coil Inductance (Le) | m H |
| Mechanical Q (Qms) | |
| Electromagnetic Q (Qes) | |
| Total Q (Qts) | |
| Compliance Equivalent Volume (Vas) | 2.25 liters / 136.51 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | cc |
| Mechanical Compliance of Suspension (Cms) | mm/N |
| BL Product (BL) | T-M |
| Diaphragm Mass Inc. Airload (MMs) | grams |
| Efficiency Bandwidth Product (EBP) | |
| Maximum Linear Excursion (Xmax) | mm |
| Surface Area of Cone (Sd) | cm2 |
| Maximum Mechanical Limit (Xlim) | N/A |
| Mounting Information | |
| Recommended Enclosure Volume | |
| Sealed | Acceptable |
| Vented | Acceptable |
| Driver Volume Displaced | 0.071 cu.ft. / 2 liters |
| Overall Diameter | 12.24", 310.9 mm |
| Baffle Hole Diameter | 11.09", 281.69 mm |
| Front Sealing Gasket | Yes |
| Rear Sealing Gasket | No |
| Mounting Holes Diameter | 0.25", 6.35mm |
| Mounting Holes B.C.D. | 11.69", 296.93mm |
| Depth | 5.21", 132.334 mm |
| Net Weight | 10.8 lbs, 4.9 kg |
| Shipping Weight | 12.3 lbs, 5.58 kgs |
| Materials of Construction | |
| Coil Construction | |
| Coil Former | |
| Magnet Composition | Ferrite magnet |
| Core Details | |
| Basket Materials | Pressed steel basket |
| Cone Composition | |
| Cone Edge Composition | |
| Dust Cap Composition | |
