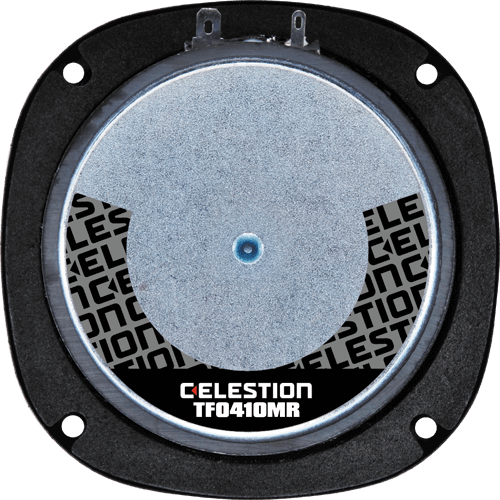

Description
General Specifications
Nominal diameter: 100mm/4in
Power rating: 30Wrms
Continuous power rating: 60W
EIA power rating: 50W
Nominal impedance: 8Ω
Sensitivity: 90dB

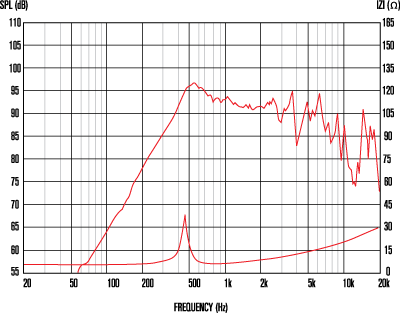

Frequency range: 400-10,000Hz
Voice coil diameter: 25mm/1in
Chassis type: Pressed steel
Magnet type: Ferrite
Magnet weight: 0.37kg/13oz
Coil material: Round copper
Former material: Polyimide
Cone material: Kevlar loaded paper
Surround material: Treated paper
Suspension: Single
Small Signal Parameters
Fs: 461Hz
Re: 5.38Ω
Le (at 1kHz): 0.7mH
Mounting Information
Overall diameter: 120mm x 108.5mm/4.7in x 4.3in
Overall depth: 60mm/2.4in
Cut-out diameter: 95mm/3.7in
Mounting slot dimensions: Ø 4.3mm/0.17in
Number of mounting slots: 4
Mounting PCD range: 109mm/4.3in
Unit weight: 1.0kg/2.2lb
