Description
Pre-orders available - this product is arriving soon!

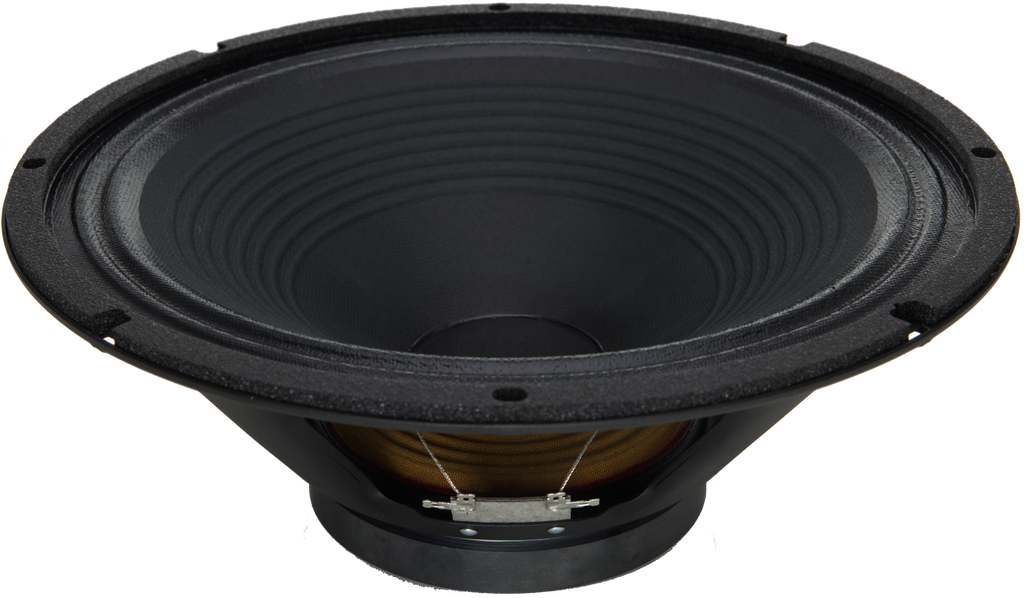

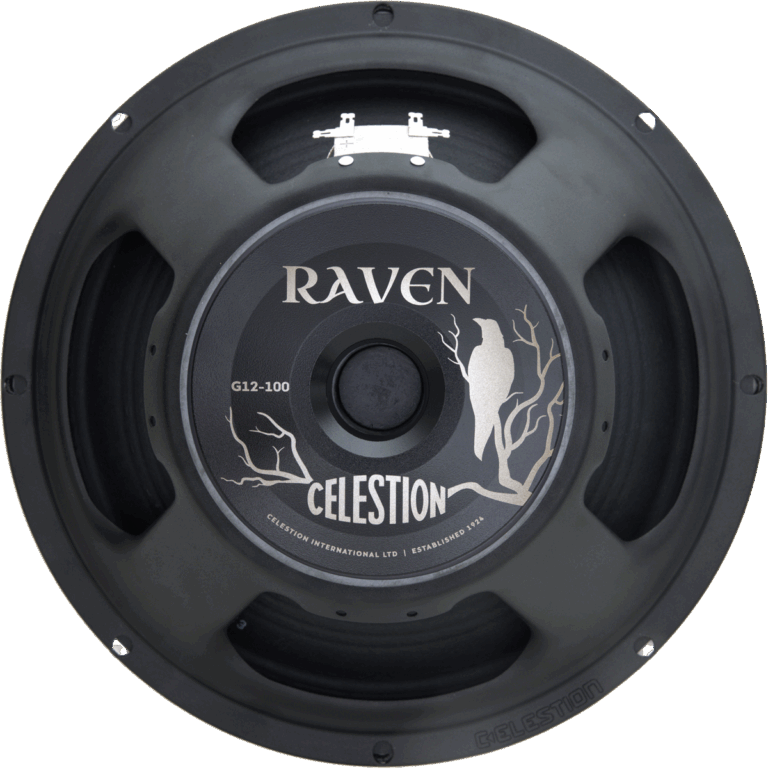

G12-100 Raven
12-inch lightweight ceramic magnet guitar speaker
Boasting a formidable 100W power rating, and a new-design, low-weight ceramic magnet structure, the Raven is engineered to handle crushing lead lines and seismic low-end riff-work. Beyond the raw power lies a truly premium tone, delivering a detailed mid-range punch, brooding highs, and a firm, authoritative low end.
The Raven is defined by its ability to deliver tons of tone, while remaining light as a feather. At the heart of this capability is a reimagined ceramic magnet assembly; a unique new motor structure that massively lowers the speaker’s overall weight—to just 2.5 kg (5.5 lb)—without compromising the huge magnetic forces required to power such a gargantuan tone machine.
Specifications:
Nominal diameter 305mm / 12in
Power rating 100W
Rated impedance 8Ω or 16Ω
Sensitivity 100dB
Chassis type Pressed steel
Magnet type Ceramic
Magnet weight 0.85kg / 30oz
Voice coil diameter 2in / 50mm
Voice coil material Round copper
Frequency range 70-5000Hz
Resonance frequency, Fs 72Hz
Mounting Information
Cut-out diameter 283mm / 11.1in
Diameter 309mm / 12.2in
Magnet structure diameter 134mm / 5.28in
Mounting hole dimensions 7.9mm / 0.31in Ø
Mounting hole PCD 297mm / 11.7in
Number of mounting holes 8
Chassis depth (inc gasket) 123.3mm / 4.85in
Magnet depth 29.3mm / 1.15in
Overall depth 123.3mm / 4.85in
Unit weight 2.5kg / 5.5lb
