Description

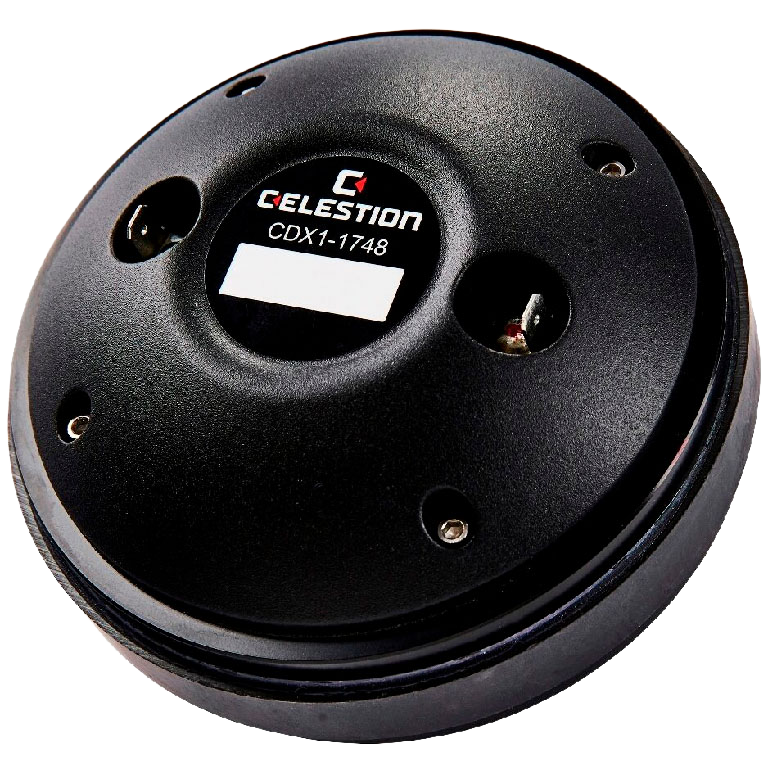

1-inch exit ferrite magnet compression driver
- 1,600Hz recommended min. crossover freq (12dB/oct)
- Single piece polyimide diaphragm and surround
- Sound Castle soft clamping diaphragm assembly
- Screw fitting
Specifications
Power rating 60W
Continuous power rating 120W
Rated impedance 8Ω
Sensitivity 110dB

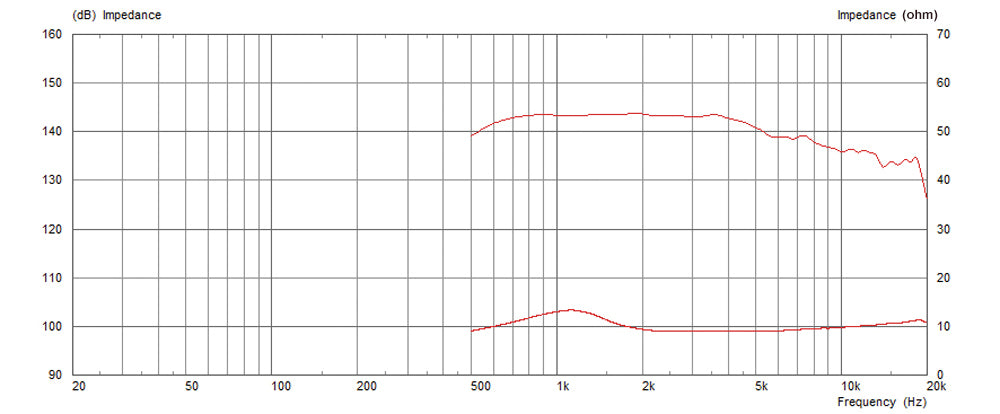

Frequency range 1000-20,000Hz
Recommended min. crossover (12dB/oct) 1600Hz
Magnet type Ferrite
Voice coil diameter 44mm / 1.75in
Voice coil material Edgewound copper clad aluminium
Diaphragm material Polyimide
Surround material Polyimide
Mounting Information
Width 120mm / 4.7in
Depth 53mm / 2.1in

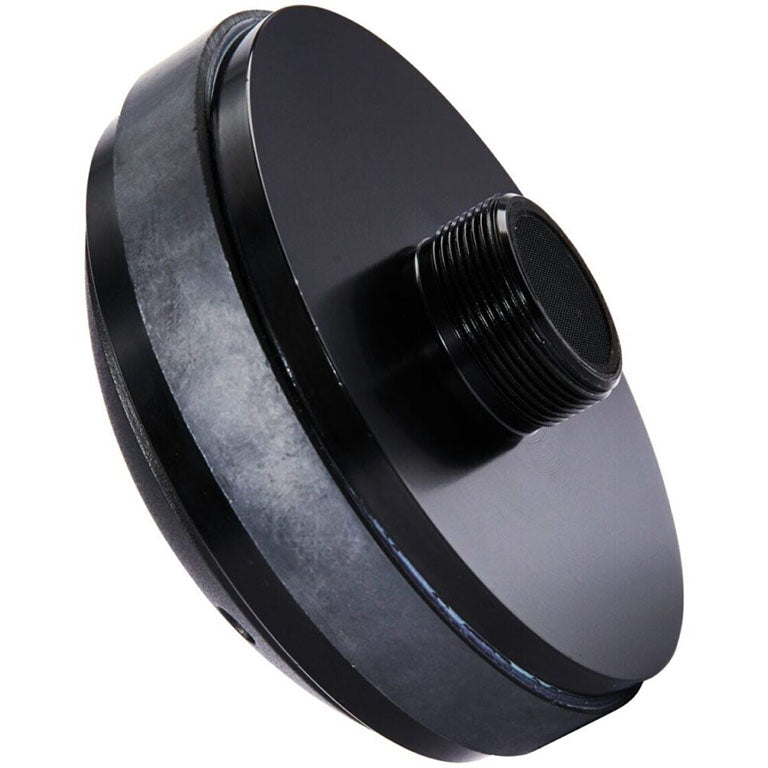

Fitting Screw (35mm/1.38in diameter)
Bolt version CDX1-1747
Throat exit 25mm / 1in
Unit weight 2.3kg / 5.1lb
Packed Dimensions & Weight
Single pack size W x D x H 140mm x 170mm x 70mm / 5.5in x 6.7in x 2.8in
Single pack weight 3kg / 6.6lb
Multi pack qty 6
Multi pack size W x D x H 430mm x 370mm x 90mm / 16.9in x 14.6in x 3.5in
Multi pack weight 14kg / 30.8lb
Horns and repair kits
T5572 Diaphragm repair kit (8Ω)
T5359 H1-9040P Horn
T5134 H1-7050 'No Bell' Horn
