Description

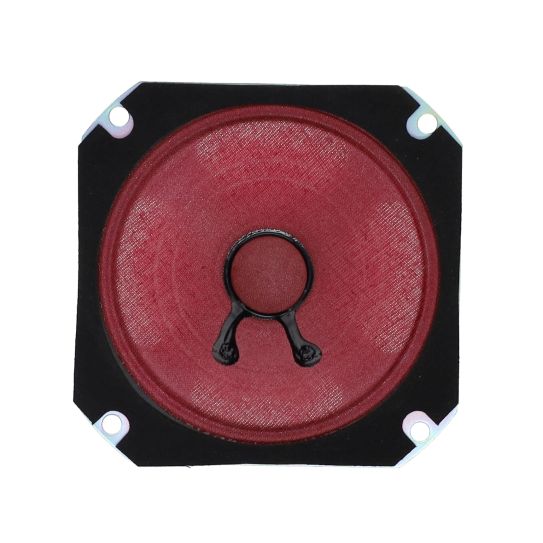

The FC4WP-AG delivers clear audio ideal for outdoor voice communication applications. A 4” acrylic treated cone provides a long-lasting defense against moisture absorption from rain and high humidity.
- Wide range driver
- 4” (100 mm) steel basket diameter
- 12 watts, 8 ohms, 92 dB SPL
- Acrylic treated cloth cone
- Ferrite magnet
-
Brand Name MISCO OEM Speaker Type Wide Range Shape of Speaker Square Size, Nominal (inch & mm) 4" (100 mm) Environment Outdoor Application Outdoor , Voice Communications Rated Impedance (Ω) 8 Rated Power IEC268-5 (W) 12 Watts Program Power (W) 24 Sensitivity (dB SPL) ¹ 92 Frequency Range (Hz) 200 - 10,000 DC Resistance (Re) (Ω) 8 Resonant Frequency (Fs) (Hz) +/- 15% 304 Nominal Impedance (Z) (Ω) 8 Total Q Factor (Qts) 1.50 Basket Type Stamped Steel Terminal Size (mm) Solder Lugs Voice Coil Diameter (mm) 19.38 Voice Coil Wire Material Copper clad aluminum Voice Coil Former Material Kapton Magnet Material Ferrite Magnet Weight (g) 136.08 Cone Body Material Acrylic treated cloth Cone Surround Material Acrylic treated cloth Spider Material Cotton Dust Cap Material Cloth Technical Notes ¹ Sensitivity is measured with 2.83 volt input, measured on-axis at 1 meter distance
