Description
If interested, contact us for updated pricing and availability.

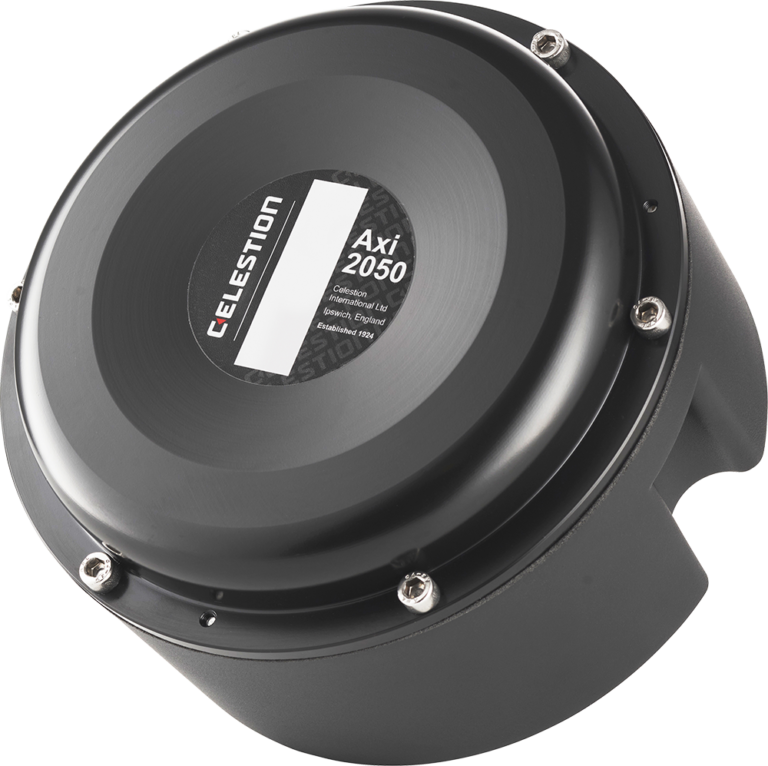

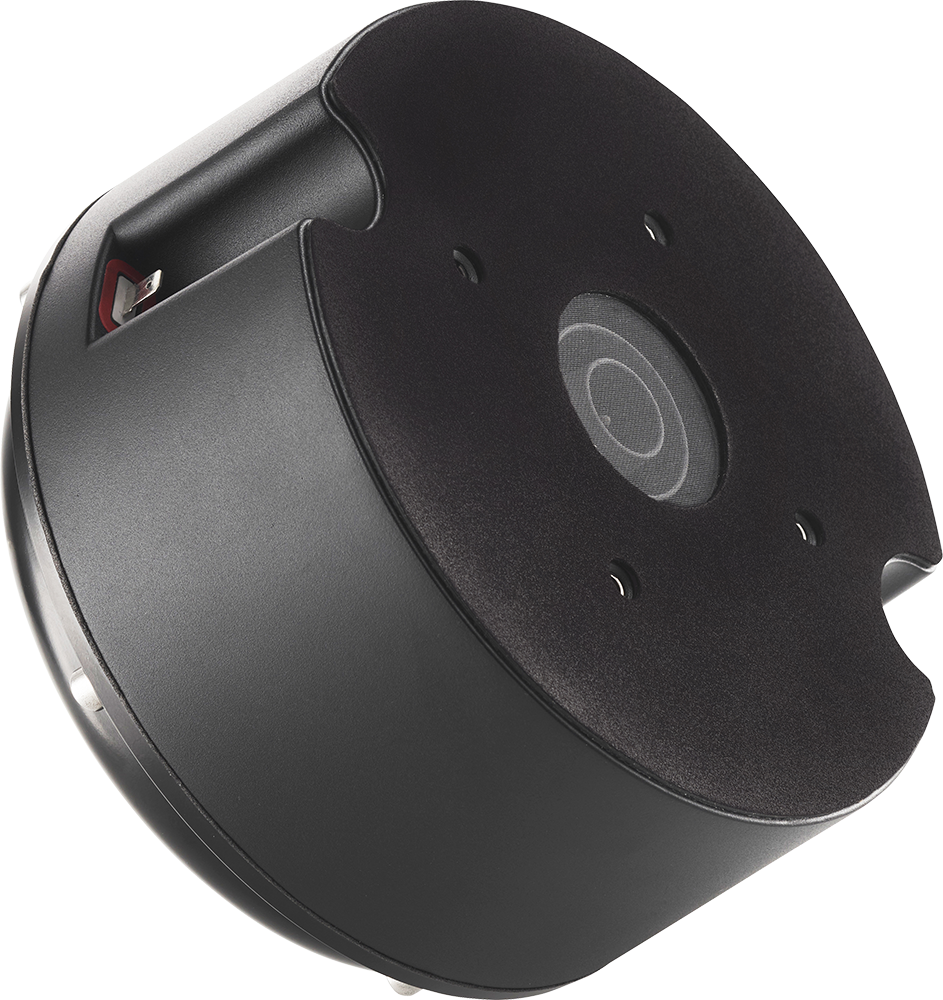

2-inch exit, neodymium magnet, wide bandwidth AxiPeriodic driver
- No midband crossover required
- Low mass Ti diaphragm with unique circumferentially AxiPeriodic geometry
- Sculpted diaphragm profile prevents break-up in critical listening band
- Vibration modes decoupled from acoustic modes removing unwanted resonance peaks
- Large effective surround area extends low frequency performance
Power rating
150W
Continuous power rating
300W
Rated impedance
8Ω
Sensitivity
108dB
Frequency range
300-20,000Hz
Magnet type
Neodymium
Voice coil diameter
125mm / 5in
Voice coil material
Aluminium
Diaphragm material
Titanium
Surround material
Integrated
Width
198mm / 7.8in
Depth
111mm / 4.4in
Fitting
Bolt (4 x M6 holes on 102mm/4in PCD)
Throat exit
50mm / 2in
Unit weight
7.5kg / 16.5lb
